Antigen Density Estimation – Mechanistic Modeling and Simulation of 89Zr-Labeled Trastuzumab Time-Activity Curves

In the life sciences, a mechanistic model is one in which the data are explained by a deterministic set of equations that relate to biological processes. The mechanistic model that we use and study the most is a tumor pharmacokinetic model based on Krogh cylinder geometry. Model equations are shown in Figure 1.
Figure 1

Mechanistic modeling equations for estimation of antigen concentration [Ag], as well as free [C], bound [B]and internalized [I] antibody concentrations.

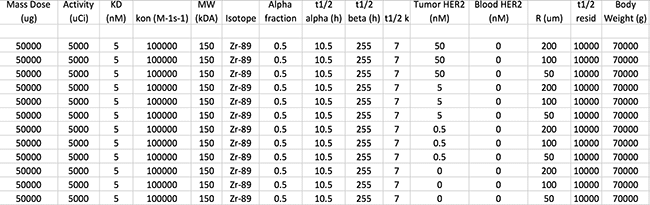

Figure 2

Input parameters used in this simulation, incorporating known values for Trastuzumab (e.g., molecular weight), typical imaging parameters (e.g., injected activity) and varying tumor characteristic parameters (e.g., HER2 expression level and vascularity).
The complete set of parameters were passed to an in-house Matlab-based modeling and simulation engine. This tool was used to execute the model, generate output plots and spreadsheets, upload those spreadsheets via an API to the iPACS, generate public links to each spreadsheet and embed all output into a summary PDF. An example page from this automatically-generated summary report is shown in Figure 3.

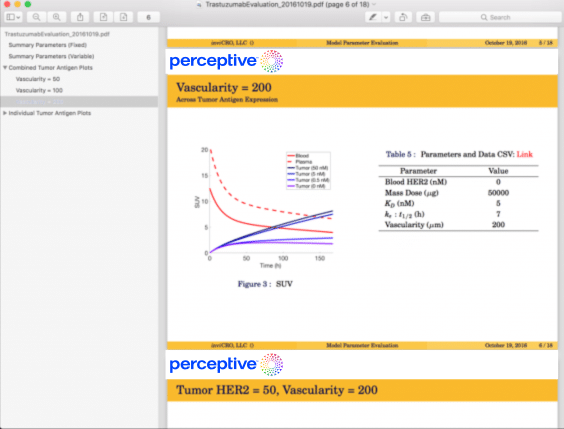

Figure 3

An example page from an automatically-generated PDF report. Tumor and blood TACs are included in the plot in units of SUV. Summary parameters specific to this run are included in the table (fixed parameters appear on a previous slide). The parameters and resulting data from this simulation run are available via the link that appears in the table caption.
These mechanistic modeling tools have tremendous utility both for prediction / simulation tasks (e.g., to evaluate possible parameter regimes as shown here) and in estimation tasks (e.g., to estimate tumor expression from a measured TAC). This model is currently being applied in both preclinical and early-phase clinical studies.
